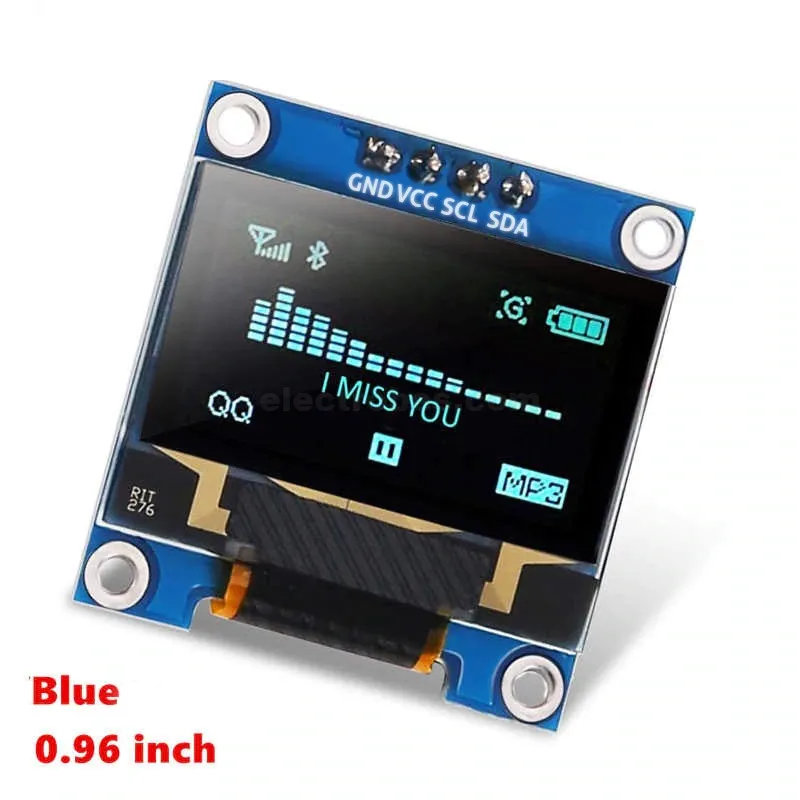

Oled 0.96 inch

Product Details

Description:

Size: 0.96

Resolution: 128X64

Color: Blue

Viewing angle: greater than 160 degrees

Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips

Low power consumption: 0.04W during normal operation

Support wide voltage: 3.3V-5V DC

Working temperature: -30-80 degrees

Volume: 27MM * 27MM * 4.1MM

Driver IC: SSD1306

Communication: IIC, only two I / O ports

No font: The software takes word modulo

Backlight: OLED self light, no backlight

Interface:

VCC: 3.3-5V

GND: Ground

SCL: Serial Clock

SDA: Serial Data
